5962-8865901XA

In Stock: 2,732

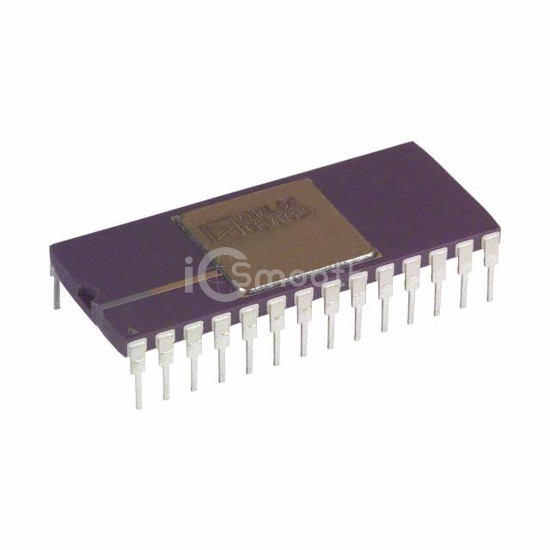

5962-8865901XA - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: 5962-8865901XA Analog Devices Inc.
5962-8865901XA

Analog Devices Inc.

IC DAC 12BIT W/BUFF LATCH 28CDIP

5962-8865901XA is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT W/BUFF LATCH 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, analog ±11.4V ~ 16.5V, package / case 28-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 2,732

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters1
Settling Time4µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±11.4V ~ 16.5V
Voltage - Supply, Digital-
INL/DNL (LSB)±0.125, ±0.25
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
Mounting TypeThrough Hole
