5962-8780201RA

In Stock: 5,794

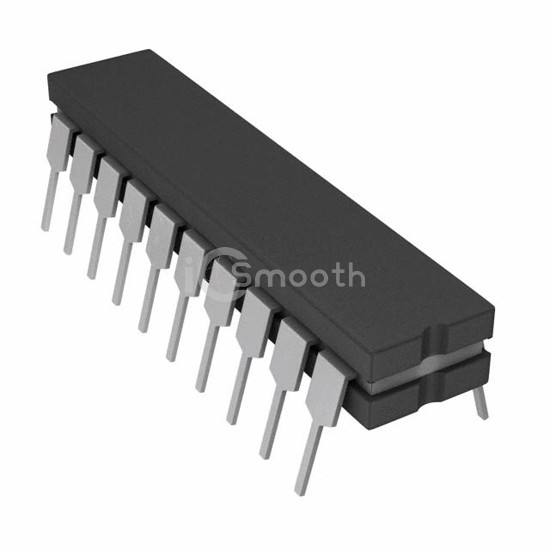

5962-8780201RA - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: 5962-8780201RA Analog Devices Inc.
5962-8780201RA

Analog Devices Inc.

IC DAC 8BIT CMOS QAUD 20CLCC

5962-8780201RA is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 8BIT CMOS QAUD 20CLCC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 11.4V ~ 16.5V, -5V, package / case 20-CDIP (0.300", 7.62mm).

Request a Quote

In Stock: 5,794

Specifications

16 parameters
Product StatusActive
Number of Bits8
Number of D/A Converters4
Settling Time4µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog11.4V ~ 16.5V, -5V
Voltage - Supply, Digital11.4V ~ 16.5V, -5V
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case20-CDIP (0.300", 7.62mm)
Supplier Device Package20-CERDIP
Mounting TypeThrough Hole
