Name: 5962-8759102LA
Brand: Analog Devices Inc.
SKU: 5962-8759102LA
Price: 99.37 USD
Availability: InStock

REF: 5962-8759102LA Analog Devices Inc.

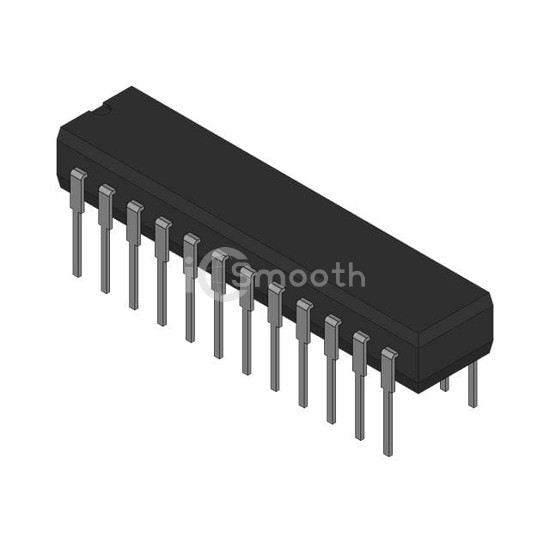

5962-8759102LA

Analog Devices Inc.

SAR, 12-BIT ADC

5962-8759102LA is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. SAR, 12-BIT ADC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital -14.25V ~ -15.75V, 4.75V ~ 5.25V, package / case 24-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 151

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	-
Number of Inputs	1
Input Type	Single Ended
Data Interface	Parallel
Configuration	MUX-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	Internal
Voltage - Supply, Analog	-14.25V ~ -15.75V, 4.75V ~ 5.25V
Voltage - Supply, Digital	-14.25V ~ -15.75V, 4.75V ~ 5.25V
Features	-
Operating Temperature	-55°C ~ 125°C
Package / Case	24-CDIP (0.300", 7.62mm)
Supplier Device Package	24-CDIP
Mounting Type	Through Hole
