Name: MX7628KP+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MX7628KP+
Availability: InStock

REF: MX7628KP+ Analog Devices Inc./Maxim Integrated

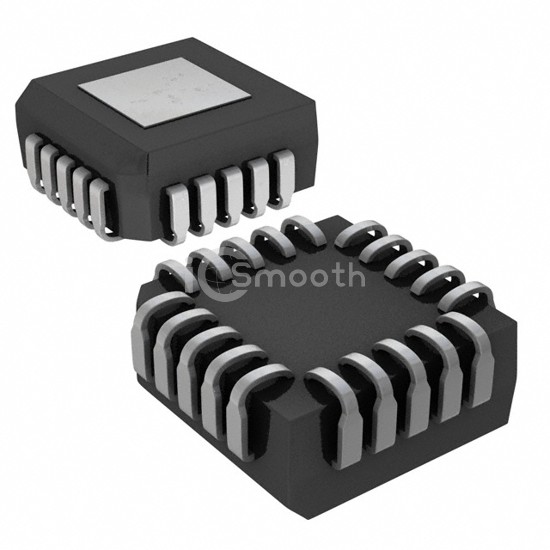

MX7628KP+

IC DAC 8BIT A-OUT 20PLCC

MX7628KP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT A-OUT 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 12V ~ 15V, package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 2,715

Specifications

16 parameters

Product Status	Obsolete
Number of Bits	8
Number of D/A Converters	2
Settling Time	400µs
Output Type	Current - Unbuffered
Differential Output	No
Data Interface	Parallel
Reference Type	External

Voltage - Supply, Analog	12V ~ 15V
Voltage - Supply, Digital	12V ~ 15V
INL/DNL (LSB)	±0.5 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	0°C ~ 70°C
Package / Case	20-LCC (J-Lead)
Supplier Device Package	20-PLCC (9x9)
Mounting Type	Surface Mount
