Name: MX7534KP+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MX7534KP+
Price: 72.33 USD
Availability: InStock

REF: MX7534KP+ Analog Devices Inc./Maxim Integrated

MX7534KP+

Analog Devices Inc./Maxim Integrated

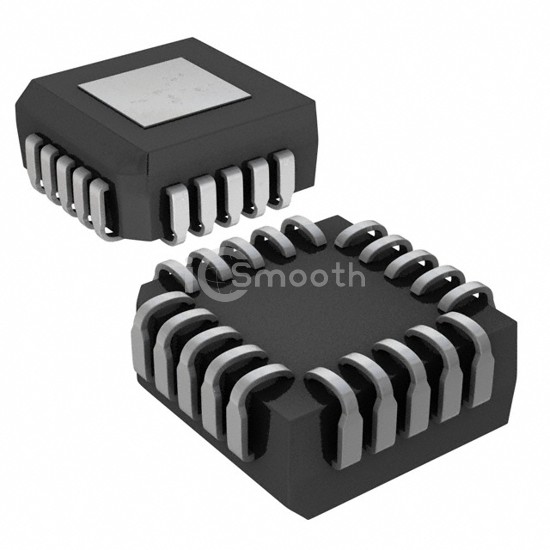

IC DAC 14BIT A-OUT 20PLCC

MX7534KP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 14BIT A-OUT 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 11.4V ~ 15.75V, package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 4,856

Specifications

16 parameters

Product Status	Active
Number of Bits	14
Number of D/A Converters	1
Settling Time	1.5µs
Output Type	Current - Unbuffered
Differential Output	No
Data Interface	Parallel
Reference Type	External

Voltage - Supply, Analog	11.4V ~ 15.75V
Voltage - Supply, Digital	11.4V ~ 15.75V
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	0°C ~ 70°C
Package / Case	20-LCC (J-Lead)
Supplier Device Package	20-PLCC (9x9)
Mounting Type	Surface Mount
