Name: MX7248JP+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MX7248JP+T
Availability: InStock

REF: MX7248JP+T Analog Devices Inc./Maxim Integrated

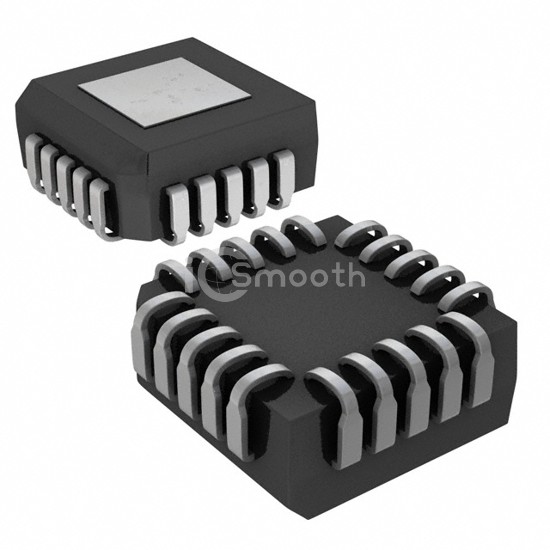

MX7248JP+T

IC DAC 12BIT V-OUT 20PLCC

MX7248JP+T is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT V-OUT 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 11.4V ~ 15.75V, package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 6,832

Specifications

16 parameters

Product Status	Obsolete
Number of Bits	12
Number of D/A Converters	1
Settling Time	5µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	Parallel
Reference Type	Internal

Voltage - Supply, Analog	±11.4V ~ 15.75V
Voltage - Supply, Digital	11.4V ~ 15.75V
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Architecture	Multiplying DAC
Operating Temperature	0°C ~ 70°C
Package / Case	20-LCC (J-Lead)
Supplier Device Package	20-PLCC (9x9)
Mounting Type	Surface Mount
