Name: MAX9756ETX+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX9756ETX+
Availability: InStock

REF: MAX9756ETX+ Analog Devices Inc./Maxim Integrated

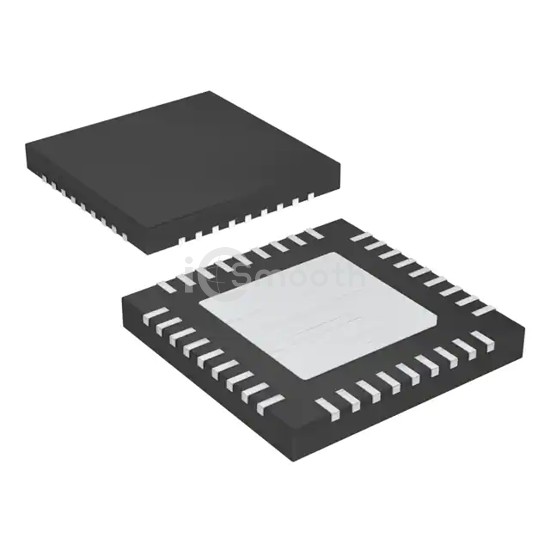

MAX9756ETX+

IC AMP CLASS AB STER 2.3W 36TQFN

MAX9756ETX+ is a Linear - Amplifiers - Audio manufactured by Analog Devices Inc./Maxim Integrated. IC AMP CLASS AB STER 2.3W 36TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 36-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,466

Specifications

10 parameters

Product Status	Obsolete
Type	Class AB
Output Type	2-Channel (Stereo) with Stereo Headphones
Max Output Power x Channels @ Load	2.3W x 2 @ 3Ohm; 130mW x 2 @ 16Ohm
Voltage - Supply	4.5V ~ 5.5V

Features	Depop, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	36-TQFN (6x6)
Package / Case	36-WFQFN Exposed Pad
