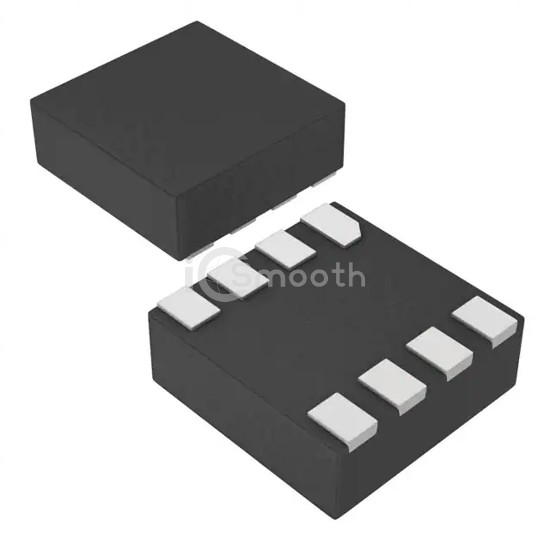

Name: MAX8633ELA+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX8633ELA+T
Price: 0.87 USD
Availability: InStock

REF: MAX8633ELA+T Analog Devices Inc./Maxim Integrated

MAX8633ELA+T

Analog Devices Inc./Maxim Integrated

IC REG LIN POS PROG 300MA 8UDFN

MAX8633ELA+T is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LIN POS PROG 300MA 8UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-WFDFN, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 2,500

Tiered Pricing USD

2,500+ $0.8721 —

5,000+ $0.8258 -5%

7,500+ $0.8025 -8%

12,500+ $0.7765 -11% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Programmable
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.5V, 2.8V
Voltage - Output (Max)	2.8V, 3V
Voltage Dropout (Max)	0.2V @ 100mA, 0.2V @ 100mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	75 µA
Current - Supply (Max)	-
PSRR	60dB ~ 55dB (1kHz ~ 10kHz)
Control Features	Enable, Reset
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN
Supplier Device Package	8-uDFN (2x2)
