Name: MAX8560EZK+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX8560EZK+T
Price: 5.18 USD
Availability: InStock

REF: MAX8560EZK+T Analog Devices Inc./Maxim Integrated

MAX8560EZK+T

Analog Devices Inc./Maxim Integrated

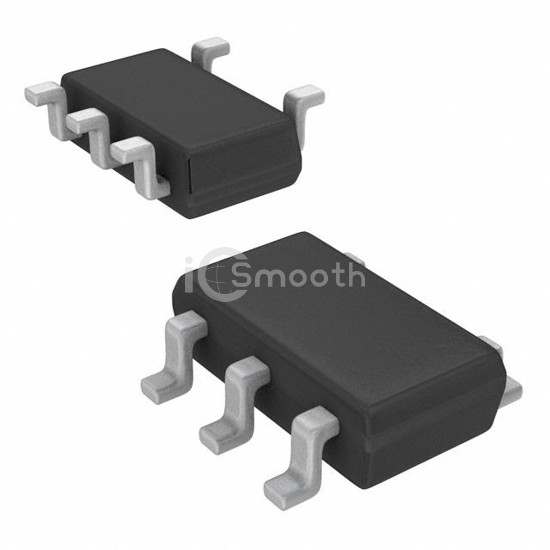

IC REG BUCK ADJ 500MA TSOT23-5

MAX8560EZK+T is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC REG BUCK ADJ 500MA TSOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-5 Thin, TSOT-23-5, current - output 500mA.

Datasheet Request a Quote

In Stock: 1,792

Tiered Pricing USD

1+ $5.1800 —

10+ $3.9530 -24%

25+ $3.6456 -30%

100+ $3.3077 -36%

250+ $3.1467 -39%

500+ $3.0497 -41%

1,000+ $2.9698 -43% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.6V

Voltage - Output (Max)	2.5V
Current - Output	500mA
Frequency - Switching	4MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Supplier Device Package	TSOT-23-5
