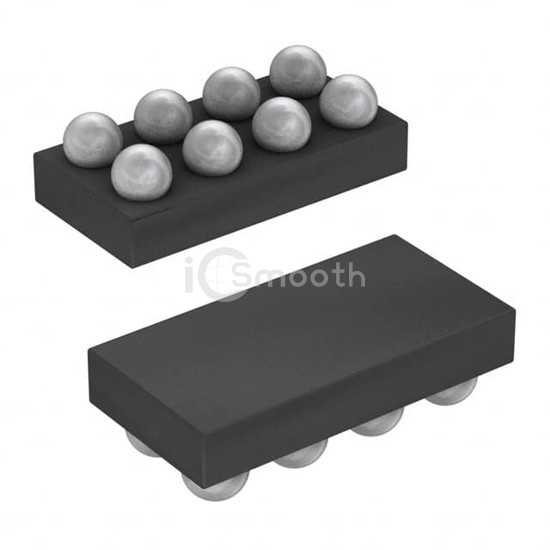

Name: MAX8559EBAGG+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX8559EBAGG+T
Price: 1.05 USD
Availability: InStock

REF: MAX8559EBAGG+T Analog Devices Inc./Maxim Integrated

MAX8559EBAGG+T

Analog Devices Inc./Maxim Integrated

IC REG LINEAR 3V/3V 8UCSP

MAX8559EBAGG+T is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LINEAR 3V/3V 8UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-WFBGA, CSPBGA, current - output 300mA, 300mA.

Datasheet Request a Quote

In Stock: 8,282

Tiered Pricing USD

2,500+ $1.0457 —

5,000+ $0.9930 -5%

7,500+ $0.9663 -8% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	6.5V
Voltage - Output (Min/Fixed)	3V, 3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.12V @ 100mA, 0.12V @ 100mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	290 µA
Current - Supply (Max)	-
PSRR	70dB ~ 54dB (10kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-WFBGA, CSPBGA
Supplier Device Package	8-UCSP (2.02x1.02)
