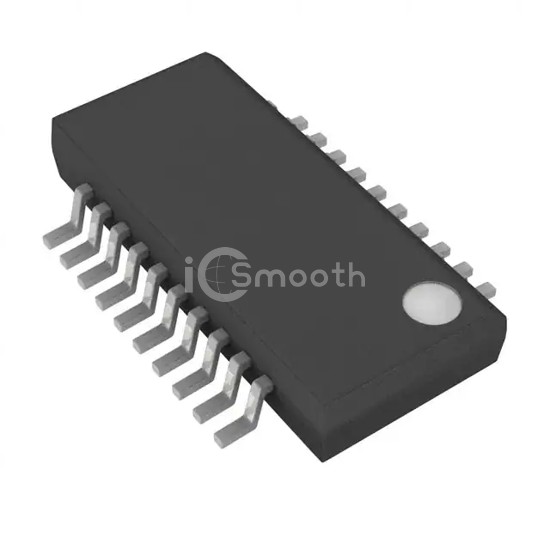

Name: MAX8544EEP+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX8544EEP+
Price: 5.53 USD
Availability: InStock

REF: MAX8544EEP+ Analog Devices Inc./Maxim Integrated

MAX8544EEP+

Analog Devices Inc./Maxim Integrated

IC REG CTRLR BUCK 20QSOP

MAX8544EEP+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 13.2V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,354

Tiered Pricing USD

1+ $5.5300 —

10+ $4.2280 -24%

50+ $3.7068 -33%

100+ $3.5451 -36%

250+ $3.3745 -39%

500+ $3.2717 -41%

1,000+ $3.1871 -42%

2,500+ $3.0977 -44% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	3V ~ 13.2V
Frequency - Switching	800kHz ~ 1.2MHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Power Good, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-QSOP
