Name: MAX77816AEWP+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX77816AEWP+T
Price: 3.56 USD
Availability: InStock

REF: MAX77816AEWP+T Analog Devices Inc./Maxim Integrated

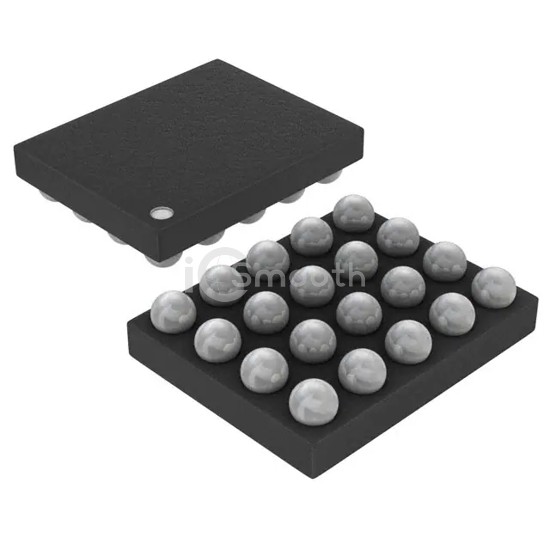

MAX77816AEWP+T

Analog Devices Inc./Maxim Integrated

IC REG BCK BST ADJ 5A 20WLP

MAX77816AEWP+T is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC REG BCK BST ADJ 5A 20WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-WFBGA, WLBGA, current - output 5A.

Datasheet Request a Quote

In Stock: 8,571

Tiered Pricing USD

1+ $3.5600 —

10+ $2.6770 -25%

25+ $2.4568 -31%

100+ $2.2153 -38%

250+ $2.1001 -41%

500+ $2.0307 -43%

1,000+ $1.9735 -45% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up, Step-Down
Output Configuration	Positive
Topology	Buck-Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	2.6V

Voltage - Output (Max)	5.14V
Current - Output	5A
Frequency - Switching	2.5MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-WFBGA, WLBGA
Supplier Device Package	20-WLP (1.83x2.13)
