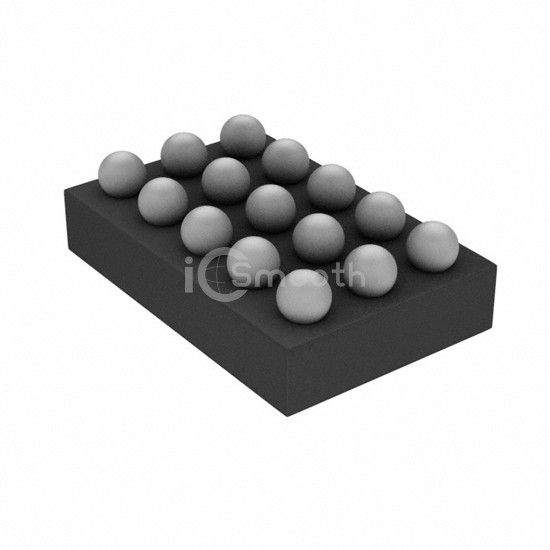

Name: MAX77756BEWL+G7
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX77756BEWL+G7
Availability: InStock

REF: MAX77756BEWL+G7 Analog Devices Inc./Maxim Integrated

MAX77756BEWL+G7

Analog Devices Inc./Maxim Integrated

IC REG BUCK 3.3V 500MA 15WLP

MAX77756BEWL+G7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC REG BUCK 3.3V 500MA 15WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 15-WFBGA, WLBGA, current - output 500mA.

Datasheet Request a Quote

In Stock: 6,358

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	24V
Voltage - Output (Min/Fixed)	3.3V

Voltage - Output (Max)	-
Current - Output	500mA
Frequency - Switching	1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	15-WFBGA, WLBGA
Supplier Device Package	15-WLP (2.33x1.42)
