Name: MAX774MJA
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX774MJA
Availability: InStock

REF: MAX774MJA Analog Devices Inc./Maxim Integrated

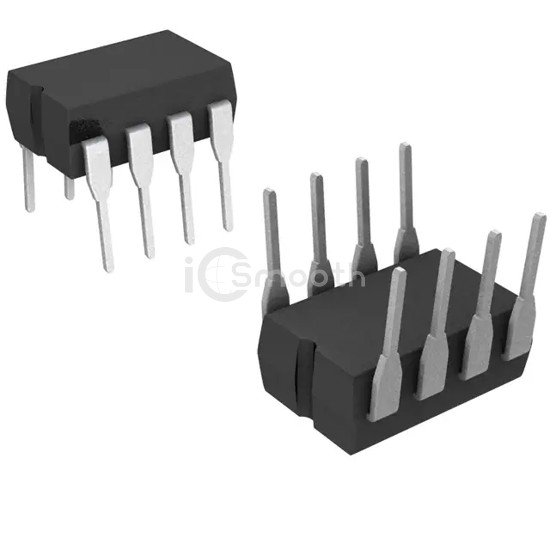

MAX774MJA

IC POWER MANAGEMENT

MAX774MJA is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC POWER MANAGEMENT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 16.5V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,969

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Negative
Topology	Buck-Boost
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	3V ~ 16.5V
Frequency - Switching	300kHz

Duty Cycle (Max)	-
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Enable
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	8-CDIP (0.300", 7.62mm)
Supplier Device Package	8-CERDIP
