Name: MAX765MJA
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX765MJA
Availability: InStock

REF: MAX765MJA Analog Devices Inc./Maxim Integrated

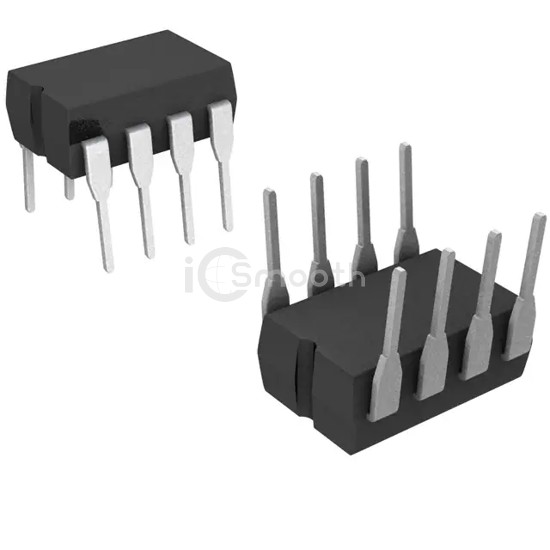

MAX765MJA

IC POWER MANAGEMENT

MAX765MJA is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC POWER MANAGEMENT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 8-CDIP (0.300", 7.62mm), current - output 250mA.

Datasheet Request a Quote

In Stock: 3,068

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Up/Step-Down
Output Configuration	Negative
Topology	Buck-Boost
Output Type	Adjustable (Fixed)
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	-1V (-12V)

Voltage - Output (Max)	-16V
Current - Output	250mA
Frequency - Switching	300kHz
Synchronous Rectifier	No
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	8-CDIP (0.300", 7.62mm)
Supplier Device Package	8-CERDIP
