Name: MAX5890EGK+TD
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5890EGK+TD
Availability: InStock

REF: MAX5890EGK+TD Analog Devices Inc./Maxim Integrated

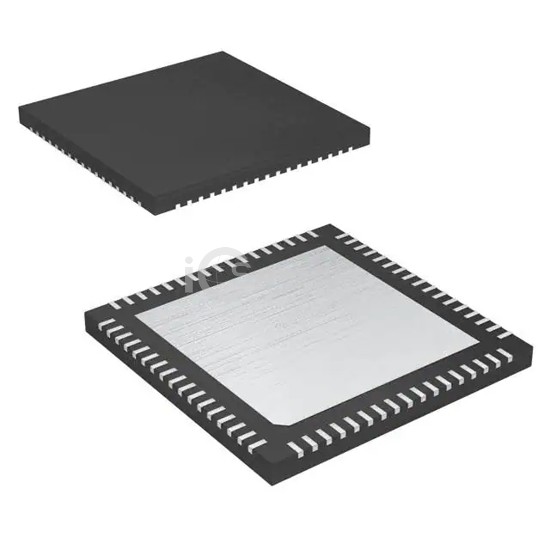

MAX5890EGK+TD

Analog Devices Inc./Maxim Integrated

IC DAC 14BIT A-OUT 68QFN

MAX5890EGK+TD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 14BIT A-OUT 68QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.71V ~ 1.89V, 3.135V ~ 3.465V, package / case 68-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,109

Specifications

16 parameters

Product Status	Active
Number of Bits	14
Number of D/A Converters	1
Settling Time	11µs (Typ)
Output Type	Current - Unbuffered
Differential Output	Yes
Data Interface	LVDS - Parallel
Reference Type	External, Internal

Voltage - Supply, Analog	1.71V ~ 1.89V, 3.135V ~ 3.465V
Voltage - Supply, Digital	1.71V ~ 1.89V, 3.135V ~ 3.465V
INL/DNL (LSB)	±1, ±0.5
Architecture	Current Steering
Operating Temperature	-40°C ~ 85°C
Package / Case	68-VFQFN Exposed Pad
Supplier Device Package	68-QFN (10x10)
Mounting Type	Surface Mount
