Name: MAX5825AWP+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5825AWP+T
Price: 28.72 USD
Availability: InStock

REF: MAX5825AWP+T Analog Devices Inc./Maxim Integrated

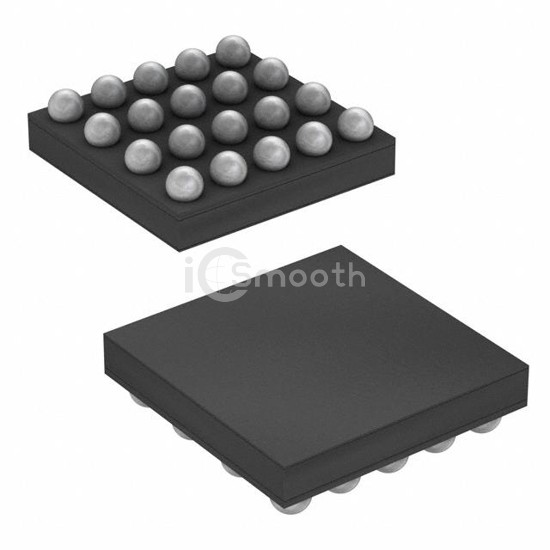

MAX5825AWP+T

Analog Devices Inc./Maxim Integrated

IC DAC 12BIT V-OUT 20WLP

MAX5825AWP+T is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT V-OUT 20WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 20-WFBGA, WLBGA.

Datasheet Request a Quote

In Stock: 7,367

Tiered Pricing USD

1+ $28.7200 —

10+ $23.1840 -19%

25+ $21.8008 -24%

100+ $20.2813 -29%

250+ $19.5570 -32%

500+ $19.1204 -33% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	8
Settling Time	4.5µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	I²C
Reference Type	External, Internal

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±0.5, ±0.2
Architecture	R-2R
Operating Temperature	-40°C ~ 125°C
Package / Case	20-WFBGA, WLBGA
Supplier Device Package	20-WLP
Mounting Type	Surface Mount
