Name: MAX5805BATB+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5805BATB+
Availability: InStock

REF: MAX5805BATB+ Analog Devices Inc./Maxim Integrated

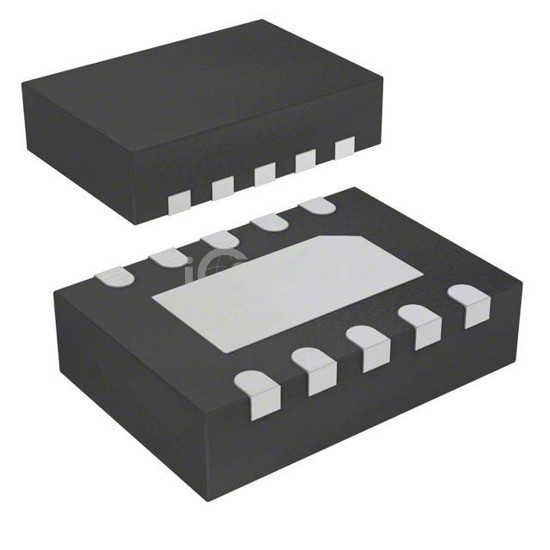

MAX5805BATB+

IC DAC 12BIT DUAL 10TDFN

MAX5805BATB+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT DUAL 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,235

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	1
Settling Time	6.3µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	I²C
Reference Type	External, Internal

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±0.5, ±0.2
Architecture	R-2R
Operating Temperature	-40°C ~ 125°C
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-TDFN (3x2)
Mounting Type	Surface Mount
