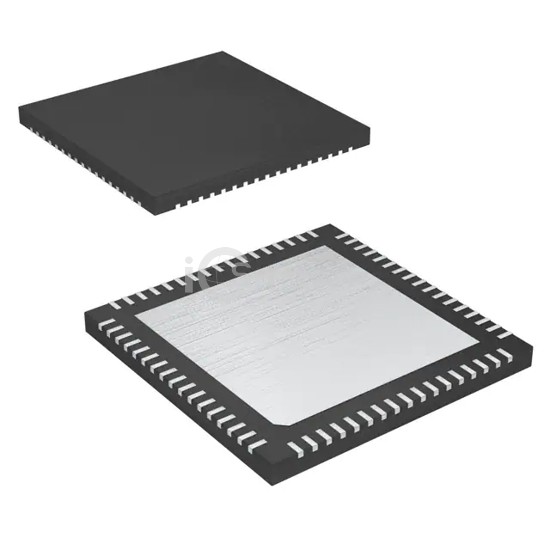

Name: MAX5774UTK+TG074
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5774UTK+TG074
Availability: InStock

REF: MAX5774UTK+TG074 Analog Devices Inc./Maxim Integrated

MAX5774UTK+TG074

Analog Devices Inc./Maxim Integrated

32-CHANNEL, 14-BIT, VOLTAGE-OUTP

MAX5774UTK+TG074 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. 32-CHANNEL, 14-BIT, VOLTAGE-OUTP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 68-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,604

Specifications

16 parameters

Product Status	Active
Number of Bits	14
Number of D/A Converters	32
Settling Time	20µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External

Voltage - Supply, Analog	5V
Voltage - Supply, Digital	2.7V ~ 5.25V
INL/DNL (LSB)	±4, ±1 (Max)
Architecture	Pipelined
Operating Temperature	0°C ~ 85°C
Package / Case	68-WFQFN Exposed Pad
Supplier Device Package	68-TQFN (10x10)
Mounting Type	Surface Mount
