Name: MAX5774UCB+D
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5774UCB+D
Availability: InStock

REF: MAX5774UCB+D Analog Devices Inc./Maxim Integrated

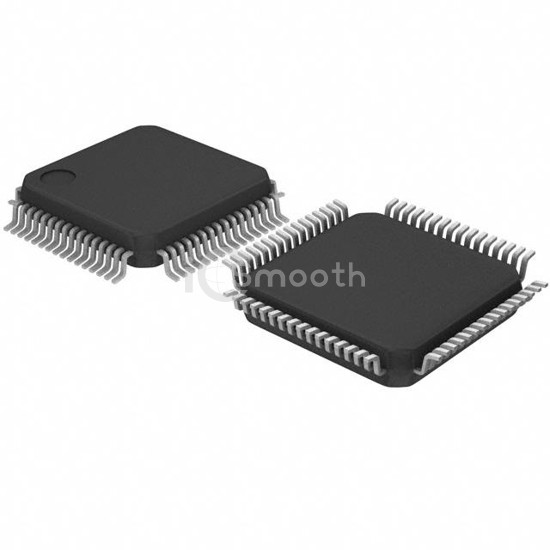

MAX5774UCB+D

IC DAC 14BIT V-OUT 64LQFP

MAX5774UCB+D is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 14BIT V-OUT 64LQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 64-LQFP.

Datasheet Request a Quote

In Stock: 8,709

Specifications

16 parameters

Product Status	Active
Number of Bits	14
Number of D/A Converters	32
Settling Time	20µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External

Voltage - Supply, Analog	5V
Voltage - Supply, Digital	2.7V ~ 5.25V
INL/DNL (LSB)	±1, ±1 (Max)
Architecture	Pipelined
Operating Temperature	0°C ~ 85°C
Package / Case	64-LQFP
Supplier Device Package	64-LQFP (10x10)
Mounting Type	Surface Mount
