Name: MAX5705BATB+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5705BATB+T
Price: 3.94 USD
Availability: InStock

REF: MAX5705BATB+T Analog Devices Inc./Maxim Integrated

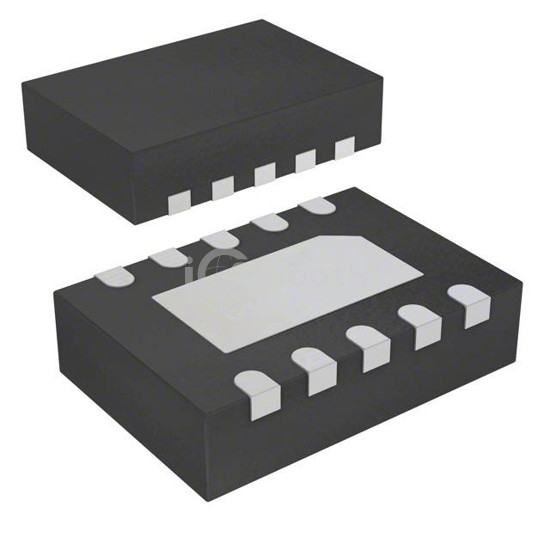

MAX5705BATB+T

Analog Devices Inc./Maxim Integrated

IC DAC 12BIT V-OUT 10TDFN

MAX5705BATB+T is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT V-OUT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,507

Tiered Pricing USD

1+ $3.9400 —

10+ $2.9770 -24%

25+ $2.7360 -31%

100+ $2.4713 -37%

250+ $2.3451 -40%

500+ $2.2690 -42%

1,000+ $2.2064 -44% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	1
Settling Time	6.3µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External, Internal

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±0.5, ±0.2
Architecture	-
Operating Temperature	-40°C ~ 125°C
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-TDFN (3x2)
Mounting Type	Surface Mount
