Name: MAX5704ATB+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5704ATB+
Availability: InStock

REF: MAX5704ATB+ Analog Devices Inc./Maxim Integrated

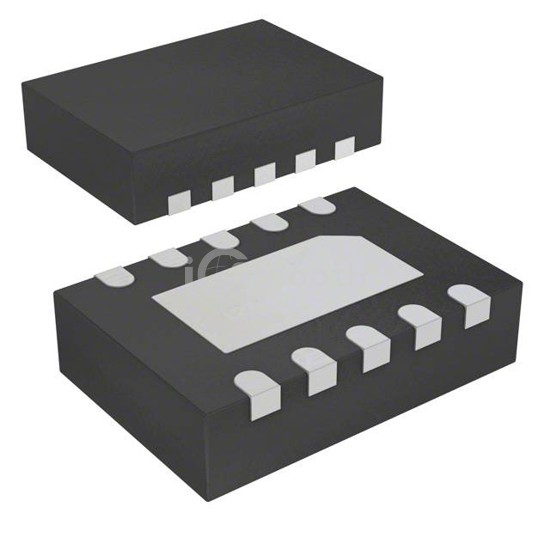

MAX5704ATB+

IC DAC 10BIT V-OUT 10TDFN

MAX5704ATB+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 10BIT V-OUT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,403

Specifications

16 parameters

Product Status	Obsolete
Number of Bits	10
Number of D/A Converters	1
Settling Time	5.2µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External, Internal

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±0.2, ±0.1
Architecture	-
Operating Temperature	-40°C ~ 125°C
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-TDFN (3x2)
Mounting Type	Surface Mount
