Name: MAX5594EUG+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5594EUG+
Price: 10.82 USD
Availability: InStock

REF: MAX5594EUG+ Analog Devices Inc./Maxim Integrated

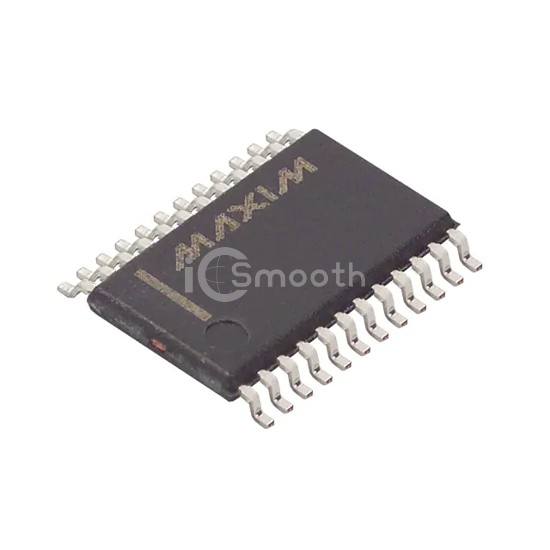

MAX5594EUG+

Analog Devices Inc./Maxim Integrated

IC DAC 8BIT V-OUT 24TSSOP

MAX5594EUG+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT V-OUT 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.8V ~ 5.25V, package / case 24-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 1,032

Tiered Pricing USD

1+ $10.8200 —

10+ $8.4630 -22%

62+ $7.4221 -31%

124+ $7.1471 -34%

310+ $6.8567 -37%

558+ $6.7061 -38%

1,054+ $6.5688 -39% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	8
Number of D/A Converters	8
Settling Time	4µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External

Voltage - Supply, Analog	2.7V ~ 5.25V
Voltage - Supply, Digital	1.8V ~ 5.25V
INL/DNL (LSB)	±0.125, ±1 (Max)
Architecture	R-2R
Operating Temperature	-40°C ~ 85°C
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
Mounting Type	Surface Mount
