Name: MAX547ACQH
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX547ACQH
Price: 53.13 USD
Availability: InStock

REF: MAX547ACQH Analog Devices Inc./Maxim Integrated

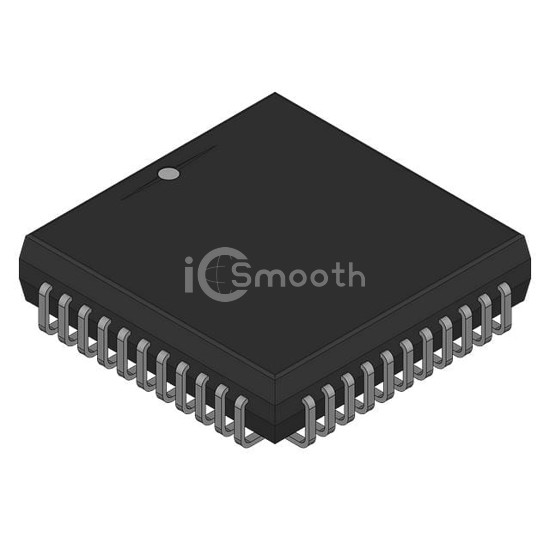

MAX547ACQH

Analog Devices Inc./Maxim Integrated

DAC, 8 FUNC, PARALLEL, WORD INPU

MAX547ACQH is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. DAC, 8 FUNC, PARALLEL, WORD INPU. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital ±4.75V ~ 5.25V, package / case 44-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 980

Specifications

16 parameters

Product Status	Active
Number of Bits	13
Number of D/A Converters	8
Settling Time	5µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	Parallel
Reference Type	External

Voltage - Supply, Analog	±4.75V ~ 5.25V
Voltage - Supply, Digital	±4.75V ~ 5.25V
INL/DNL (LSB)	±0.5, ±1
Architecture	R-2R
Operating Temperature	0°C ~ 70°C
Package / Case	44-LCC (J-Lead)
Supplier Device Package	44-PLCC (16.59x16.59)
Mounting Type	Surface Mount
