Name: MAX5322EAI+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5322EAI+
Price: 28.10 USD
Availability: InStock

REF: MAX5322EAI+ Analog Devices Inc./Maxim Integrated

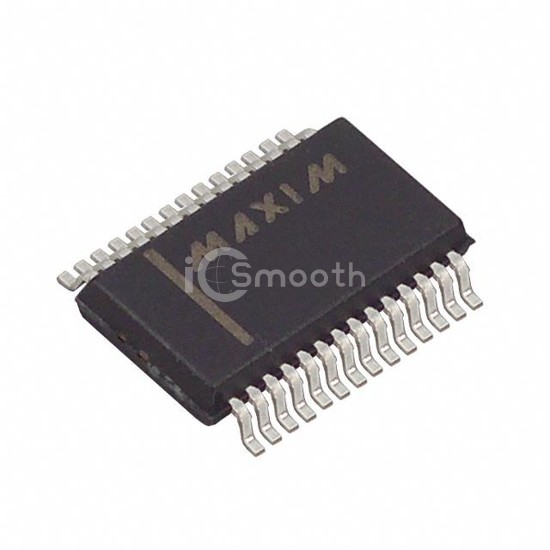

MAX5322EAI+

Analog Devices Inc./Maxim Integrated

IC DAC 12BIT V-OUT 28SSOP

MAX5322EAI+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT V-OUT 28SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 28-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 6,701

Tiered Pricing USD

1+ $28.1000 —

10+ $22.6660 -19%

46+ $20.5820 -27%

138+ $19.5476 -30%

276+ $19.0415 -32%

506+ $18.6729 -34% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	2
Settling Time	10µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	External

Voltage - Supply, Analog	±10.8V ~ 15.75V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	-40°C ~ 85°C
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
Mounting Type	Surface Mount
