Name: MAX5223EKA+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5223EKA+T
Price: 4.81 USD
Availability: InStock

REF: MAX5223EKA+T Analog Devices Inc./Maxim Integrated

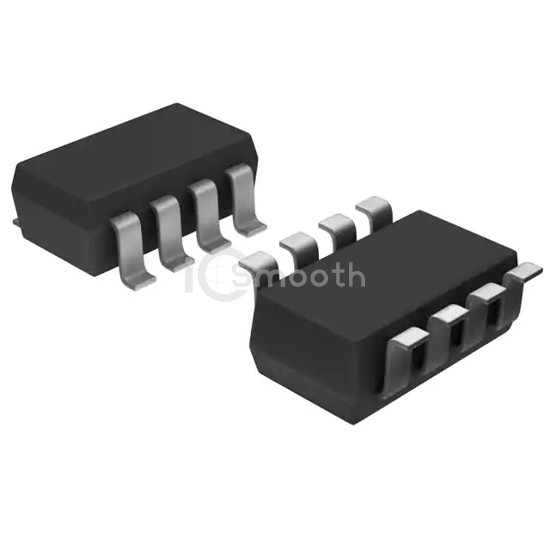

MAX5223EKA+T

Analog Devices Inc./Maxim Integrated

IC DAC 8BIT V-OUT SOT23-8

MAX5223EKA+T is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT V-OUT SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case SOT-23-8.

Datasheet Request a Quote

In Stock: 6,421

Tiered Pricing USD

1+ $4.8100 —

10+ $3.6580 -24%

25+ $3.3708 -30%

100+ $3.0548 -36%

250+ $2.9041 -40%

500+ $2.8133 -42%

1,000+ $2.7386 -43% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	8
Number of D/A Converters	2
Settling Time	50µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	External

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±0.3, ±0.2
Architecture	R-2R
Operating Temperature	-40°C ~ 85°C
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
Mounting Type	Surface Mount
