Name: MAX5105EEP+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5105EEP+
Price: 11.88 USD
Availability: InStock

REF: MAX5105EEP+ Analog Devices Inc./Maxim Integrated

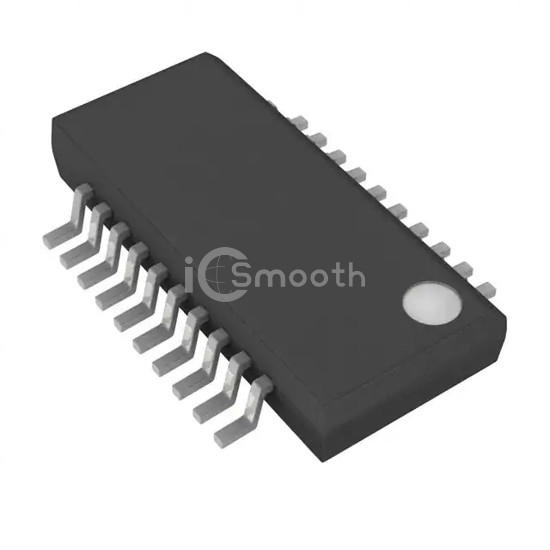

MAX5105EEP+

Analog Devices Inc./Maxim Integrated

IC DAC 8BIT V-OUT 20QSOP

MAX5105EEP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT V-OUT 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 33

Tiered Pricing USD

1+ $11.8800 —

10+ $9.3190 -22%

50+ $8.2944 -30%

100+ $7.9772 -33%

250+ $7.6423 -36%

500+ $7.4405 -37%

1,000+ $7.2744 -39% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	8
Number of D/A Converters	4
Settling Time	6µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	External

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±2 (Max), ±1 (Max)
Architecture	String DAC
Operating Temperature	-40°C ~ 85°C
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-QSOP
Mounting Type	Surface Mount
