Name: MAX5077AUD-T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX5077AUD-T
Availability: InStock

REF: MAX5077AUD-T Analog Devices Inc./Maxim Integrated

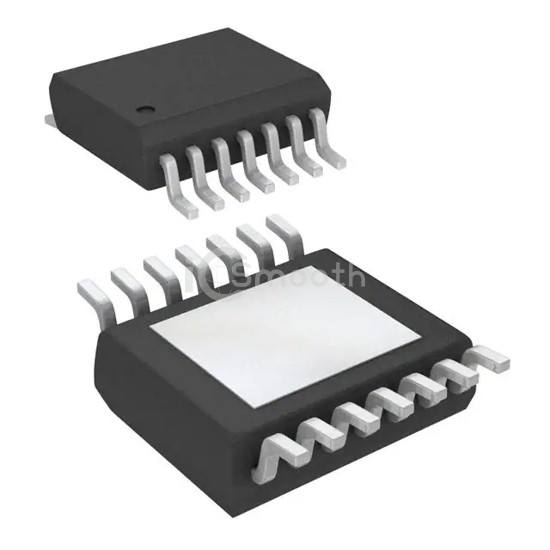

MAX5077AUD-T

IC GATE DRVR LOW-SIDE 14TSSOP

MAX5077AUD-T is a PMIC - Gate Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC GATE DRVR LOW-SIDE 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 15V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,283

Specifications

15 parameters

Product Status	Obsolete
Driven Configuration	Low-Side
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4.5V ~ 15V
Logic Voltage - VIL, VIH	-
Current - Peak Output (Source, Sink)	3A, 3A

Input Type	RC Input Circuit
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	10ns, 10ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-TSSOP-EP
