Name: MAX4747ETE+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4747ETE+T
Price: 1.20 USD
Availability: InStock

REF: MAX4747ETE+T Analog Devices Inc./Maxim Integrated

MAX4747ETE+T

Analog Devices Inc./Maxim Integrated

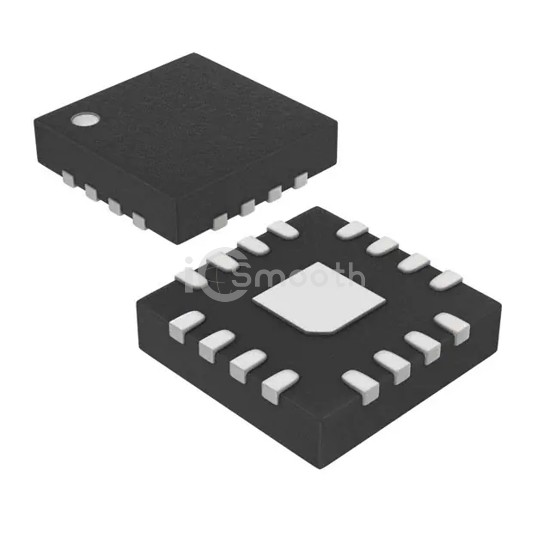

IC SWITCH ANLG QUAD SPDT 16TQFN

MAX4747ETE+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH ANLG QUAD SPDT 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 4,284

Tiered Pricing USD

2,500+ $1.2048 —

5,000+ $1.1464 -5%

7,500+ $1.1169 -7% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	25Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	2V ~ 11V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	85ns, 45ns

-3db Bandwidth	250MHz
Charge Injection	9pC
Channel Capacitance (CS(off), CD(off))	20pF, 20pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-84dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-TQFN (4x4)
