Name: MAX4747ETE+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4747ETE+
Price: 3.40 USD
Availability: InStock

REF: MAX4747ETE+ Analog Devices Inc./Maxim Integrated

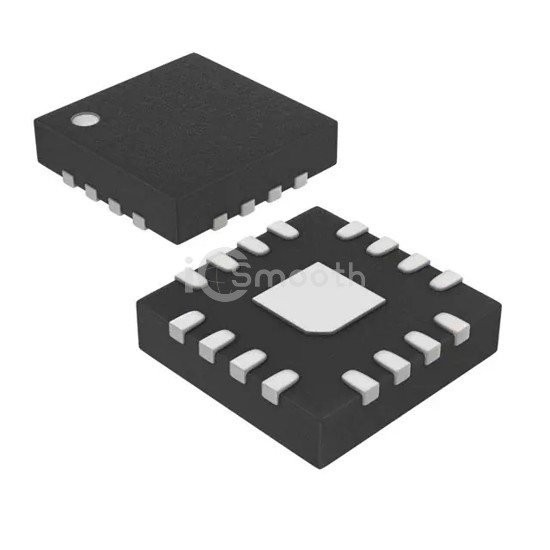

MAX4747ETE+

Analog Devices Inc./Maxim Integrated

IC SWITCH ANLG QUAD SPDT 16TQFN

MAX4747ETE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH ANLG QUAD SPDT 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 9,515

Tiered Pricing USD

1+ $3.4000 —

75+ $1.6285 -52%

150+ $1.4872 -56%

300+ $1.3696 -60%

525+ $1.2892 -62%

1,050+ $1.2050 -65%

2,550+ $1.1176 -67%

5,025+ $1.0636 -69% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	25Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	2V ~ 11V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	85ns, 45ns

-3db Bandwidth	250MHz
Charge Injection	9pC
Channel Capacitance (CS(off), CD(off))	20pF, 20pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-84dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-TQFN (4x4)
