Name: MAX4745HELB+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4745HELB+
Availability: InStock

REF: MAX4745HELB+ Analog Devices Inc./Maxim Integrated

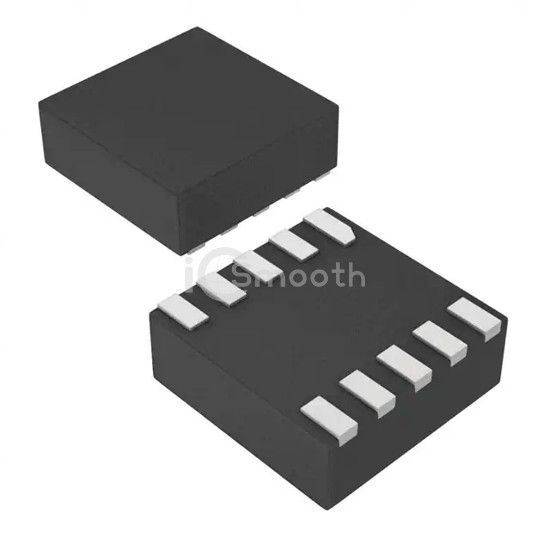

MAX4745HELB+

IC SWITCH SPDT DUAL 10UDFN

MAX4745HELB+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPDT DUAL 10UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFDFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,179

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	950mOhm
Channel-to-Channel Matching (ΔRon)	100mOhm (Max)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	560ns, 450ns

-3db Bandwidth	25MHz
Charge Injection	550pC
Channel Capacitance (CS(off), CD(off))	90pF, 90pF
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-75dB @ 100kHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-WFDFN
Supplier Device Package	10-uDFN (2x2)
