Name: MAX4699ETE+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4699ETE+T
Availability: InStock

REF: MAX4699ETE+T Analog Devices Inc./Maxim Integrated

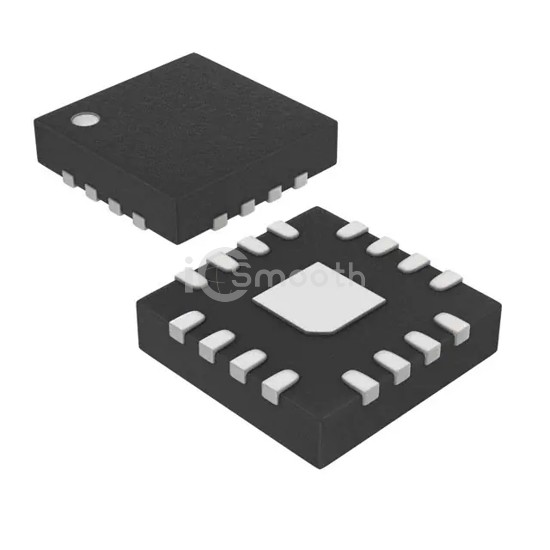

MAX4699ETE+T

IC SWITCH DUAL DPDT 16TQFN

MAX4699ETE+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DUAL DPDT 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,704

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	75Ohm
Channel-to-Channel Matching (ΔRon)	2Ohm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 20ns

-3db Bandwidth	250MHz
Charge Injection	0.5pC
Channel Capacitance (CS(off), CD(off))	8pF
Current - Leakage (IS(off)) (Max)	500pA
Crosstalk	-79dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Supplier Device Package	16-TQFN (4x4)
