Name: MAX4693EGE+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4693EGE+
Availability: InStock

REF: MAX4693EGE+ Analog Devices Inc./Maxim Integrated

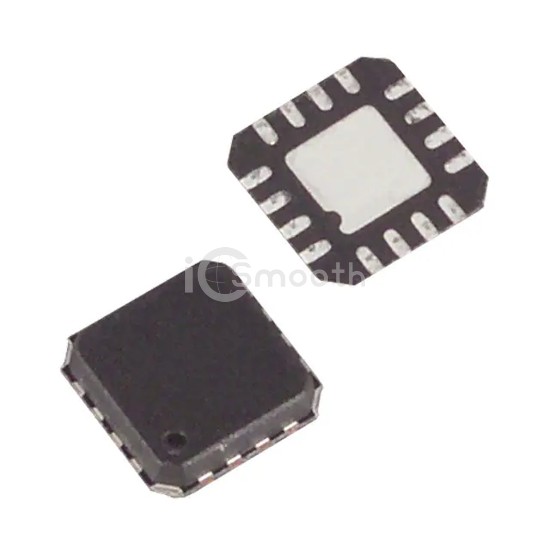

MAX4693EGE+

LOW-VOLTAGE 8:1 MUX/DUAL 4:1 MUX

MAX4693EGE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. LOW-VOLTAGE 8:1 MUX/DUAL 4:1 MUX. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 3.

Request a Quote

In Stock: 1,851

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	25Ohm
Channel-to-Channel Matching (ΔRon)	2Ohm
Voltage - Supply, Single (V+)	2V ~ 11V, ±2V ~ 5.5V
Voltage - Supply, Dual (V±)	2V ~ 11V, ±2V ~ 5.5V
Switch Time (Ton, Toff) (Max)	80ns, 50ns

-3db Bandwidth	-
Charge Injection	1.8pC
Channel Capacitance (CS(off), CD(off))	9pF, 20pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-84dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad
Supplier Device Package	16-QFN (4x4)
