Name: MAX4692EGE+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4692EGE+
Price: 6.76 USD
Availability: InStock

REF: MAX4692EGE+ Analog Devices Inc./Maxim Integrated

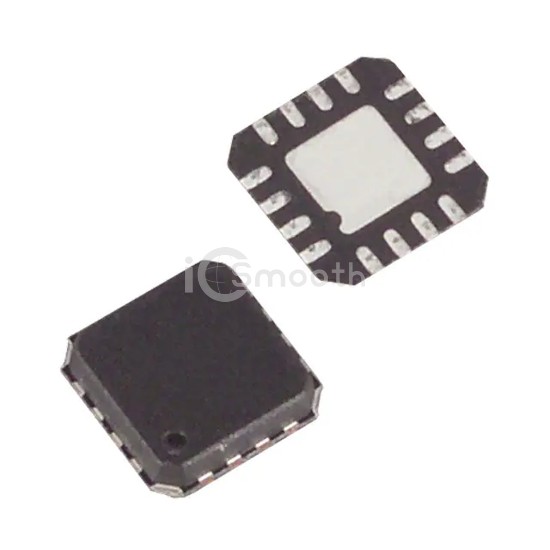

MAX4692EGE+

Analog Devices Inc./Maxim Integrated

IC MULTIPLEXER DUAL 4X1 16QFN

MAX4692EGE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER DUAL 4X1 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 7,458

Tiered Pricing USD

1+ $6.7600 —

10+ $5.2020 -23%

75+ $4.4620 -34%

150+ $4.2897 -37%

300+ $4.1480 -39%

525+ $4.0521 -40%

1,050+ $3.9524 -42%

2,550+ $3.8501 -43% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	70Ohm
Channel-to-Channel Matching (ΔRon)	2Ohm
Voltage - Supply, Single (V+)	2.7V ~ 11V
Voltage - Supply, Dual (V±)	±2V ~ 5.5V
Switch Time (Ton, Toff) (Max)	300ns, 100ns

-3db Bandwidth	-
Charge Injection	0.1pC
Channel Capacitance (CS(off), CD(off))	9pF, 68pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-75dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad
Supplier Device Package	16-QFN (4x4)
