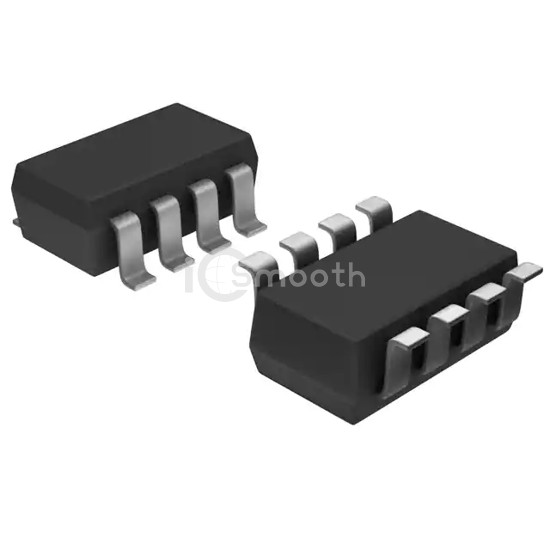

Name: MAX4564EKA-T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4564EKA-T
Availability: InStock

REF: MAX4564EKA-T Analog Devices Inc./Maxim Integrated

MAX4564EKA-T

LOW-VOLTAGE, DUAL-SUPPLY, SPDT A

MAX4564EKA-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. LOW-VOLTAGE, DUAL-SUPPLY, SPDT A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 1.

Request a Quote

In Stock: 3,517

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	60Ohm
Channel-to-Channel Matching (ΔRon)	750mOhm
Voltage - Supply, Single (V+)	1.8V ~ 12V, ±1.8V ~ 6V
Voltage - Supply, Dual (V±)	1.8V ~ 12V, ±1.8V ~ 6V
Switch Time (Ton, Toff) (Max)	60ns, 40ns

-3db Bandwidth	450MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	6pF, 8pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-72dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
