Name: MAX4564EKA+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4564EKA+T
Price: 3.03 USD
Availability: InStock

REF: MAX4564EKA+T Analog Devices Inc./Maxim Integrated

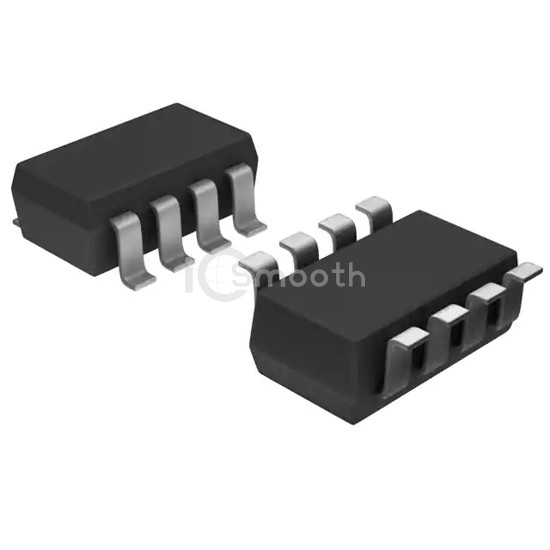

MAX4564EKA+T

Analog Devices Inc./Maxim Integrated

IC SWITCH SPDT SOT23-8

MAX4564EKA+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPDT SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 1.

Datasheet Request a Quote

In Stock: 8,141

Tiered Pricing USD

1+ $3.0300 —

10+ $2.2670 -25%

25+ $2.0764 -31%

100+ $1.8670 -38%

250+ $1.7672 -42%

500+ $1.7070 -44%

1,000+ $1.6575 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	60Ohm
Channel-to-Channel Matching (ΔRon)	750mOhm
Voltage - Supply, Single (V+)	1.8V ~ 12V
Voltage - Supply, Dual (V±)	±1V ~ 6V
Switch Time (Ton, Toff) (Max)	60ns, 40ns

-3db Bandwidth	450MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	6pF, 8pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-72dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
