MAX4535EUD

In Stock: 9,066
MAX4535EUD - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: MAX4535EUD Analog Devices Inc./Maxim Integrated
MAX4535EUD

Analog Devices Inc./Maxim Integrated

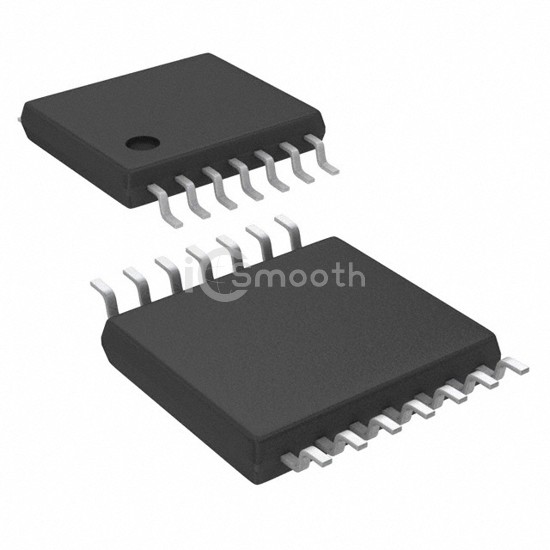

IC MULTIPLEXER DUAL 2X1 14TSSOP

MAX4535EUD is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER DUAL 2X1 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 14-TSSOP (0.173", 4.40mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 9,066

Specifications

18 parameters
Product StatusObsolete
Switch CircuitDPST - NO
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)400Ohm
Channel-to-Channel Matching (ΔRon)2Ohm
Voltage - Supply, Single (V+)9V ~ 36V
Voltage - Supply, Dual (V±)±4.5V ~ 20V
Switch Time (Ton, Toff) (Max)275ns, 200ns
-3db Bandwidth-
Charge Injection1pC
Channel Capacitance (CS(off), CD(off))5pF, 4pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-53dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package14-TSSOP
