Name: MAX4514EUK+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4514EUK+T
Price: 2.82 USD
Availability: InStock

REF: MAX4514EUK+T Analog Devices Inc./Maxim Integrated

MAX4514EUK+T

Analog Devices Inc./Maxim Integrated

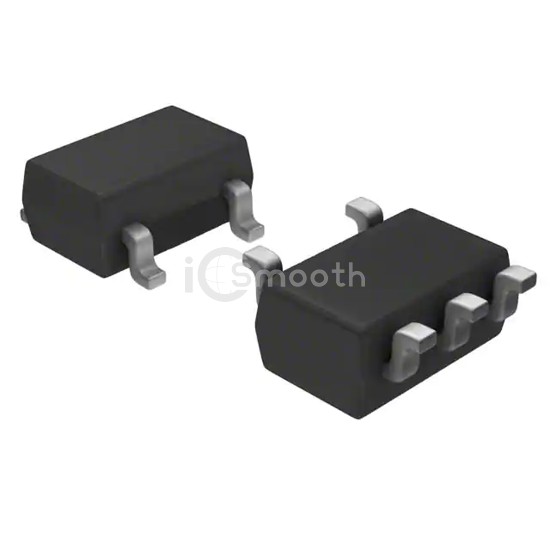

IC SWITCH SPST SOT23-5

MAX4514EUK+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, number of circuits 1.

Datasheet Request a Quote

In Stock: 7,413

Tiered Pricing USD

1+ $2.8200 —

10+ $2.1050 -25%

25+ $1.9264 -32%

100+ $1.7300 -39%

250+ $1.6364 -42%

500+ $1.5799 -44%

1,000+ $1.5335 -46% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	20Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	2V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	150ns, 100ns

-3db Bandwidth	-
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	14pF, 14pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
