Name: MAX4514CUK+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4514CUK+T
Price: 2.47 USD
Availability: InStock

REF: MAX4514CUK+T Analog Devices Inc./Maxim Integrated

MAX4514CUK+T

Analog Devices Inc./Maxim Integrated

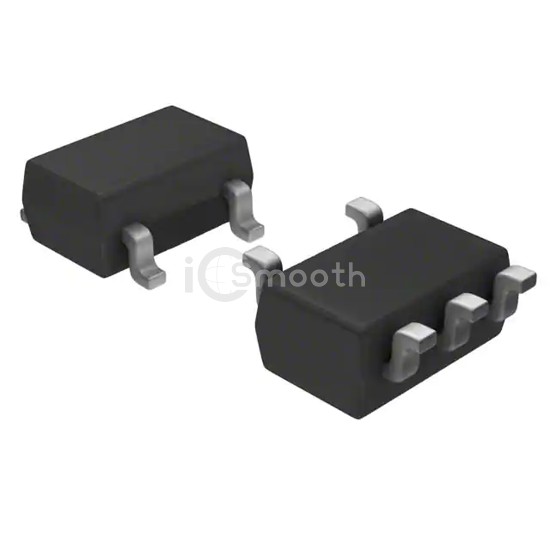

IC SWITCH SPST SOT23-5

MAX4514CUK+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST SOT23-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case SC-74A, SOT-753, number of circuits 1.

Datasheet Request a Quote

In Stock: 13,377

Tiered Pricing USD

1+ $2.4700 —

10+ $1.8330 -26%

25+ $1.6748 -32%

100+ $1.5006 -39%

250+ $1.4175 -43%

500+ $1.3674 -45%

1,000+ $1.3262 -46% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	20Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	2V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	150ns, 100ns

-3db Bandwidth	-
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	14pF, 14pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
