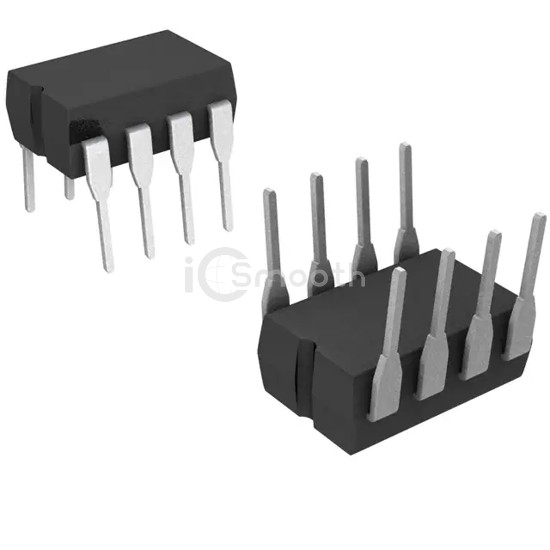

Name: MAX4426MJA/883B
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX4426MJA/883B
Availability: InStock

REF: MAX4426MJA/883B Analog Devices Inc./Maxim Integrated

MAX4426MJA/883B

Analog Devices Inc./Maxim Integrated

IC GATE DRVR LOW-SIDE 8CERDIP

MAX4426MJA/883B is a PMIC - Gate Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC GATE DRVR LOW-SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,604

Specifications

15 parameters

Product Status	Active
Driven Configuration	Low-Side
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel, P-Channel MOSFET
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2.4V
Current - Peak Output (Source, Sink)	1.5A, 1.5A

Input Type	Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	20ns, 20ns
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	8-CDIP (0.300", 7.62mm)
Supplier Device Package	8-CERDIP
