MAX394CPP+

In Stock: 4,466
MAX394CPP+ - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: MAX394CPP+ Analog Devices Inc./Maxim Integrated
MAX394CPP+

Analog Devices Inc./Maxim Integrated

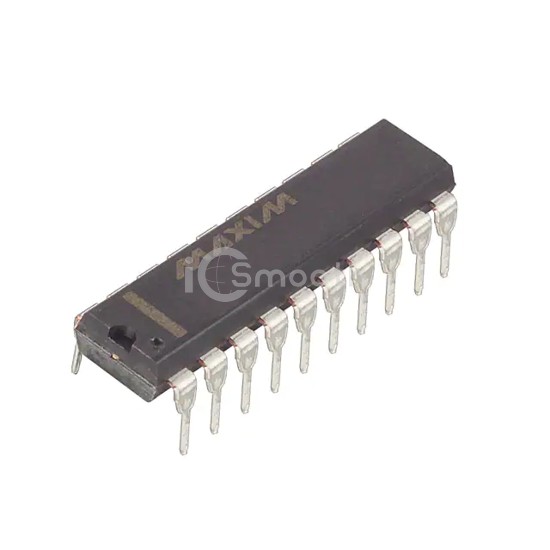

IC SWITCH QUAD SPDT 20DIP

MAX394CPP+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD SPDT 20DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 20-DIP (0.300", 7.62mm), number of circuits 4.

Datasheet Request a Quote

In Stock: 4,466

Specifications

18 parameters
Product StatusObsolete
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)35Ohm
Channel-to-Channel Matching (ΔRon)500mOhm
Voltage - Supply, Single (V+)2.7V ~ 15V
Voltage - Supply, Dual (V±)±2.7V ~ 8V
Switch Time (Ton, Toff) (Max)130ns, 75ns
-3db Bandwidth-
Charge Injection5pC
Channel Capacitance (CS(off), CD(off))12pF, 12pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-88dB @ 1MHz
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case20-DIP (0.300", 7.62mm)
Supplier Device Package20-PDIP
