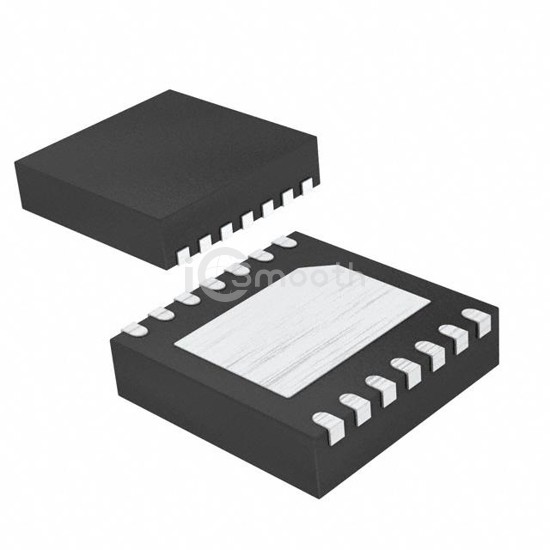

Name: MAX38909ATD+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX38909ATD+
Price: 5.16 USD
Availability: InStock

REF: MAX38909ATD+ Analog Devices Inc./Maxim Integrated

MAX38909ATD+

Analog Devices Inc./Maxim Integrated

IC REG LIN POS PROG 4A 14TDFN

MAX38909ATD+ is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LIN POS PROG 4A 14TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 14-WFDFN Exposed Pad, current - output 4A.

Datasheet Request a Quote

In Stock: 8,832

Tiered Pricing USD

1+ $5.1600 —

10+ $3.9350 -24%

25+ $3.6292 -30%

100+ $3.2929 -36%

250+ $3.1324 -39%

624+ $3.0086 -42%

1,248+ $2.9339 -43%

3,120+ $2.8549 -45% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Programmable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.6V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.036V @ 2A (Typ)
Current - Output	4A

Current - Quiescent (Iq)	150 µA
Current - Supply (Max)	-
PSRR	60dB ~ 42dB (1kHz ~ 100kHz)
Control Features	Enable, Power On Reset
Protection Features	Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-WFDFN Exposed Pad
Supplier Device Package	14-TDFN (3x3)
