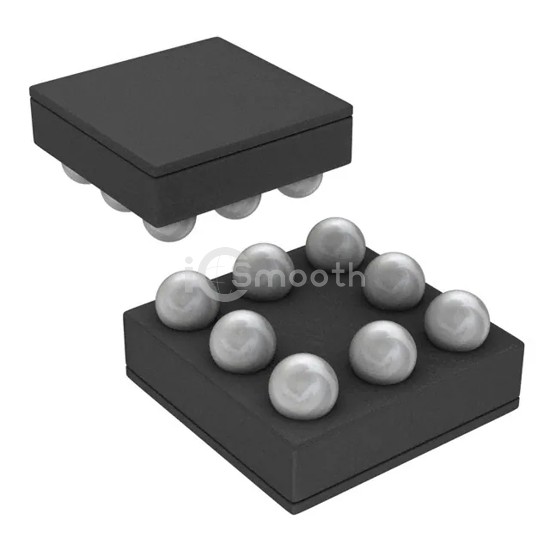

Name: MAX3394EEBL+TG45
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX3394EEBL+TG45
Price: 1.20 USD
Availability: InStock

REF: MAX3394EEBL+TG45 Analog Devices Inc./Maxim Integrated

MAX3394EEBL+TG45

Analog Devices Inc./Maxim Integrated

IC TRNSLTR BIDIRECTIONAL 8UCSP

MAX3394EEBL+TG45 is a Logic - Translators, Level Shifters manufactured by Analog Devices Inc./Maxim Integrated. IC TRNSLTR BIDIRECTIONAL 8UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WFBGA, CSPBGA, output type Open Drain, Push-Pull, Tri-State.

Datasheet Request a Quote

In Stock: 8,016

Tiered Pricing USD

2,500+ $1.2048 —

5,000+ $1.1464 -5%

7,500+ $1.1169 -7% BEST

Specifications

16 parameters

Product Status	Obsolete
Translator Type	Voltage Level
Channel Type	Bidirectional
Number of Circuits	1
Channels per Circuit	2
Voltage - VCCA	1.2 V ~ 5.5 V
Voltage - VCCB	1.65 V ~ 5.5 V
Input Signal	-

Output Signal	-
Output Type	Open Drain, Push-Pull, Tri-State
Data Rate	6Mbps
Operating Temperature	-40°C ~ 85°C (TA)
Features	Auto-Direction Sensing, Power Supply Decoupling, Thermal-Shutdown Protection
Mounting Type	Surface Mount
Package / Case	8-WFBGA, CSPBGA
Supplier Device Package	8-UCSP (1.52x1.52)
