MAX314ESE+T

In Stock: 9,095
MAX314ESE+T - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: MAX314ESE+T Analog Devices Inc./Maxim Integrated
MAX314ESE+T

Analog Devices Inc./Maxim Integrated

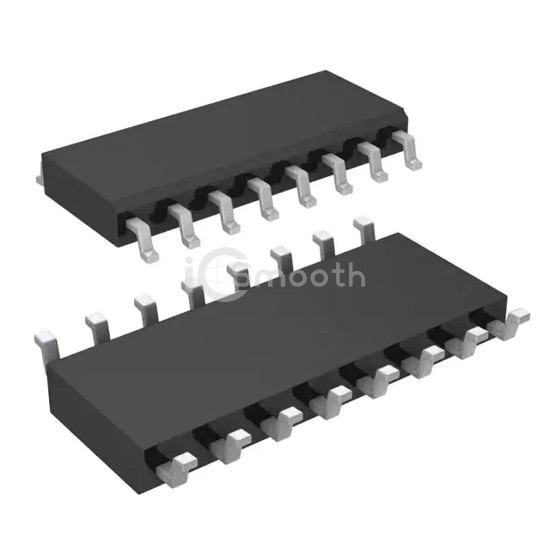

IC SWITCH QUAD SPST 16SOIC

MAX314ESE+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD SPST 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 4.

Datasheet Request a Quote

In Stock: 9,095

Tiered Pricing USD
1+ $9.1900 —
10+ $7.1530 -22%
25+ $6.6424 -28%
100+ $6.0817 -34%
250+ $5.8144 -37%
500+ $5.6532 -38%
1,000+ $5.5206 -40% BEST

Specifications

18 parameters
Product StatusActive
Switch CircuitSPST - NO/NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)10Ohm
Channel-to-Channel Matching (ΔRon)300mOhm
Voltage - Supply, Single (V+)4.5V ~ 30V
Voltage - Supply, Dual (V±)±4.5V ~ 20V
Switch Time (Ton, Toff) (Max)225ns, 185ns
-3db Bandwidth-
Charge Injection20pC
Channel Capacitance (CS(off), CD(off))15pF, 15pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
