MAX309CSE

In Stock: 2,919
MAX309CSE - Analog Devices Inc./Maxim Integrated - Interface - Analog Switches, Multiplexers, Demultiplexers
REF: MAX309CSE Analog Devices Inc./Maxim Integrated
MAX309CSE

Analog Devices Inc./Maxim Integrated

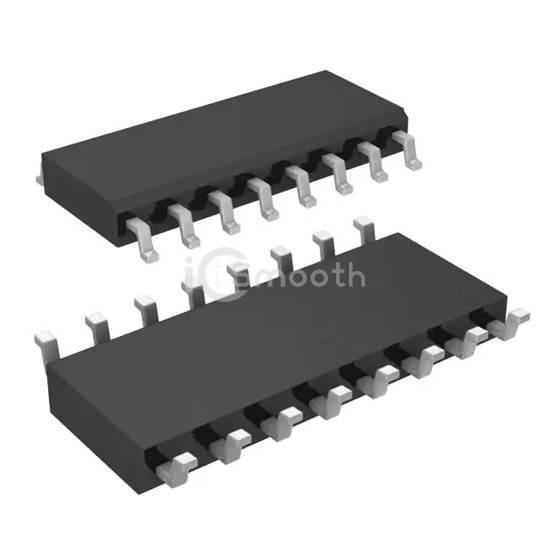

IC MULTIPLEXER 4X1 16SOIC

MAX309CSE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER 4X1 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 2,919

Specifications

18 parameters
Product StatusObsolete
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)100Ohm
Channel-to-Channel Matching (ΔRon)1.5Ohm
Voltage - Supply, Single (V+)5V ~ 30V
Voltage - Supply, Dual (V±)±5V ~ 20V
Switch Time (Ton, Toff) (Max)150ns, 150ns
-3db Bandwidth-
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))3pF, 26pF
Current - Leakage (IS(off)) (Max)750pA
Crosstalk-92dB @ 100kHz
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
