Name: MAX22517AWA+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX22517AWA+
Price: 4.83 USD
Availability: InStock

REF: MAX22517AWA+ Analog Devices Inc./Maxim Integrated

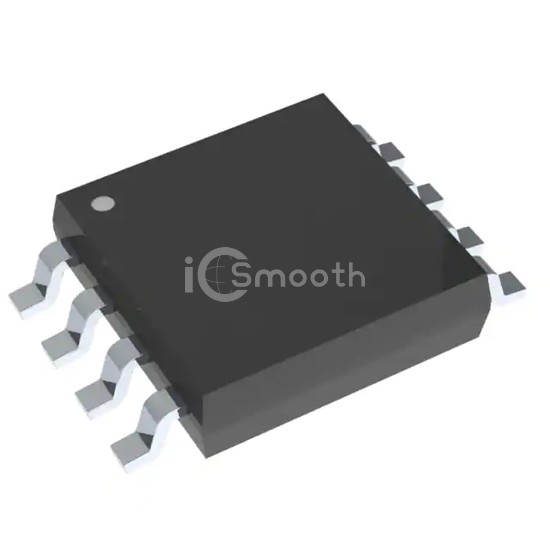

MAX22517AWA+

Analog Devices Inc./Maxim Integrated

IC 2-CHL DIGITAL ISOLATOR SOIC

MAX22517AWA+ is a Digital Isolators manufactured by Analog Devices Inc./Maxim Integrated. IC 2-CHL DIGITAL ISOLATOR SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 5.5V, package / case 8-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 1,047

Tiered Pricing USD

1+ $4.8300 —

10+ $3.6760 -24%

25+ $3.3868 -30%

100+ $3.0697 -36%

280+ $2.9023 -40% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Channel Type	Unidirectional
Voltage - Isolation	3500Vrms
Common Mode Transient Immunity (Min)	50kV/µs

Data Rate	1Mbps
Propagation Delay tpLH / tpHL (Max)	130ns, 130ns
Pulse Width Distortion (Max)	20ns
Rise / Fall Time (Typ)	20ns, 20ns
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.209", 5.30mm Width)
Supplier Device Package	8-SOIC
