MAX22258AUD+

In Stock: 9,048
MAX22258AUD+ - Analog Devices Inc./Maxim Integrated - PMIC - Full, Half-Bridge Drivers
REF: MAX22258AUD+ Analog Devices Inc./Maxim Integrated
MAX22258AUD+

Analog Devices Inc./Maxim Integrated

36V H-BRIDGE TRANSFORMER DRIVER

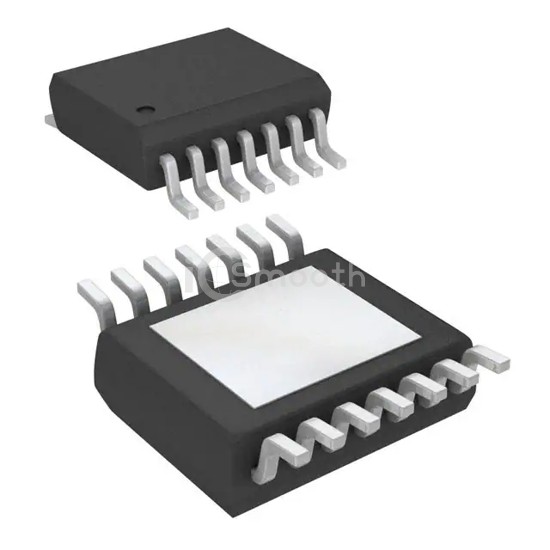

MAX22258AUD+ is a PMIC - Full, Half-Bridge Drivers manufactured by Analog Devices Inc./Maxim Integrated. 36V H-BRIDGE TRANSFORMER DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 36V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 9,048

Tiered Pricing USD
1+ $7.3100 —
10+ $5.6430 -23%
96+ $4.7792 -35%
192+ $4.6070 -37%
288+ $4.5207 -38%
576+ $4.3942 -40%
1,056+ $4.3021 -41% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsGeneral Purpose
InterfaceLogic
Load TypeInductive, Capacitive, Resistive
Technology-
Rds On (Typ)260mOhm LS, 520mOhm HS
Current - Output / Channel1A
Current - Peak Output1A
Voltage - Supply5V ~ 36V
Voltage - Load5V ~ 36V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOver Current, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package14-TSSOP-EP
