MAX22256AATB+

In Stock: 1,205

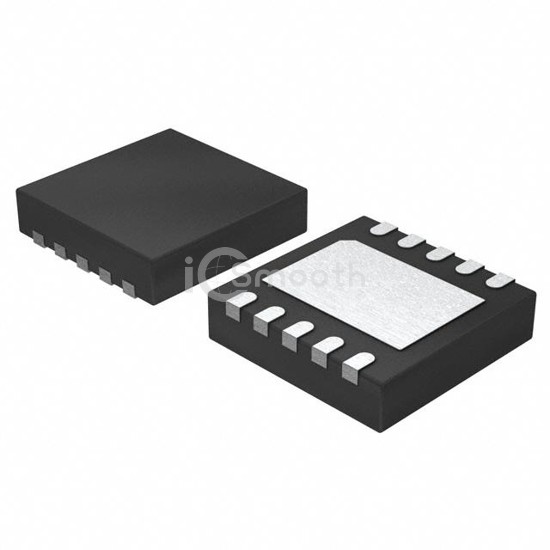

MAX22256AATB+ - Analog Devices Inc./Maxim Integrated - PMIC - Full, Half-Bridge Drivers
REF: MAX22256AATB+ Analog Devices Inc./Maxim Integrated
MAX22256AATB+

Analog Devices Inc./Maxim Integrated

36V H-BRIDGE TRANSFORMER DRIVER

MAX22256AATB+ is a PMIC - Full, Half-Bridge Drivers manufactured by Analog Devices Inc./Maxim Integrated. 36V H-BRIDGE TRANSFORMER DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 36V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,205

Tiered Pricing USD
1+ $8.3800 —
10+ $6.5010 -22%
25+ $6.0308 -28%
100+ $5.5138 -34%
250+ $5.2674 -37%
624+ $5.0772 -39%
1,248+ $4.9623 -41% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsGeneral Purpose
InterfaceLogic
Load TypeInductive, Capacitive, Resistive
Technology-
Rds On (Typ)260mOhm LS, 520mOhm HS
Current - Output / Channel1A
Current - Peak Output1A
Voltage - Supply5V ~ 36V
Voltage - Load5V ~ 36V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOver Current, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad
Supplier Device Package10-TDFN (3x3)
