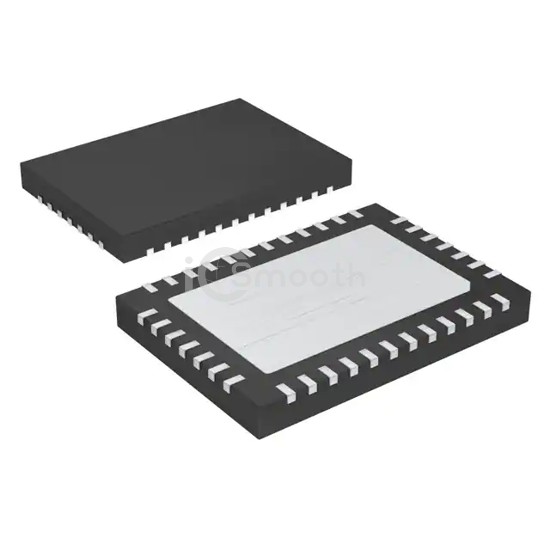

Name: MAX22205ATU+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX22205ATU+
Price: 5.90 USD
Availability: InStock

REF: MAX22205ATU+ Analog Devices Inc./Maxim Integrated

MAX22205ATU+

Analog Devices Inc./Maxim Integrated

DUAL H-BRIDGE FOR STEPPER AND BR

MAX22205ATU+ is a PMIC - Motor Drivers, Controllers manufactured by Analog Devices Inc./Maxim Integrated. DUAL H-BRIDGE FOR STEPPER AND BR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 65V, package / case 38-WFQFN Exposed Pad.

Request a Quote

In Stock: 1,183

Tiered Pricing USD

1+ $5.9000 —

10+ $4.5200 -23%

25+ $4.1756 -29%

100+ $3.7967 -36%

364+ $3.5545 -40%

728+ $3.4565 -41%

1,092+ $3.4074 -42%

2,548+ $3.3213 -44% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	On/Off, PWM
Technology	NMOS
Step Resolution	1, 1/2

Applications	DC Motors, General Purpose, Stepper Motors
Current - Output	7.6A
Voltage - Supply	4.5V ~ 65V
Voltage - Load	4.5V ~ 65V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	38-WFQFN Exposed Pad
Supplier Device Package	38-TQFN (5x7)
