MAX20307EWL+

In Stock: 2,981
MAX20307EWL+ - Analog Devices Inc./Maxim Integrated - PMIC - Gate Drivers
REF: MAX20307EWL+ Analog Devices Inc./Maxim Integrated
MAX20307EWL+

Analog Devices Inc./Maxim Integrated

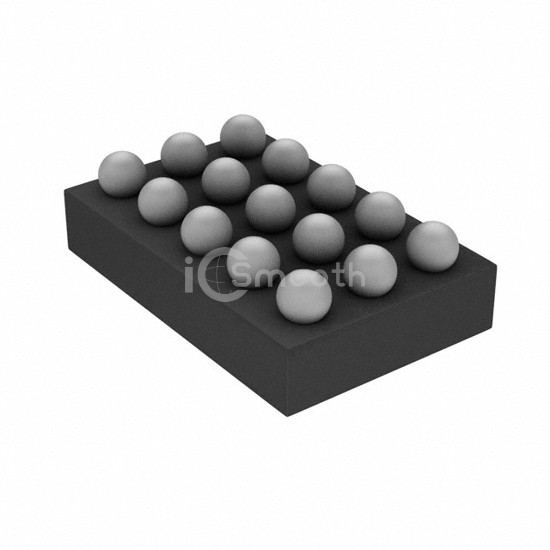

IC GATE DRVR HALF-BRIDGE 15WLP

MAX20307EWL+ is a PMIC - Gate Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC GATE DRVR HALF-BRIDGE 15WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 15-WFBGA, WLBGA.

Datasheet Request a Quote

In Stock: 2,981

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 5.5V
Logic Voltage - VIL, VIH0.4V, 1.6V
Current - Peak Output (Source, Sink)1A, 5A
Input TypeTTL
High Side Voltage - Max (Bootstrap)60 V
Rise / Fall Time (Typ)5ns, 1ns
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case15-WFBGA, WLBGA
Supplier Device Package15-WLP (1.22x2.05)
